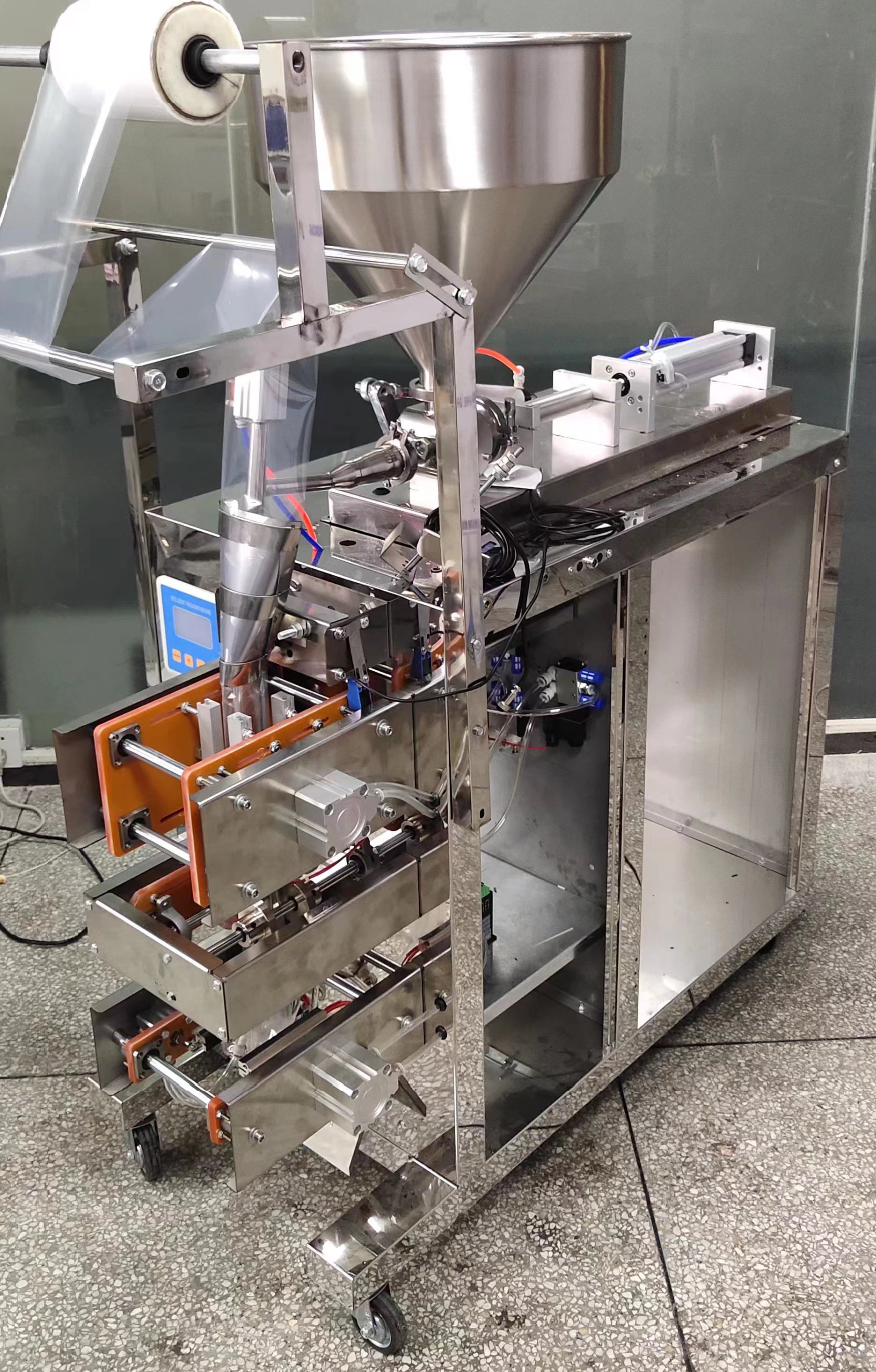

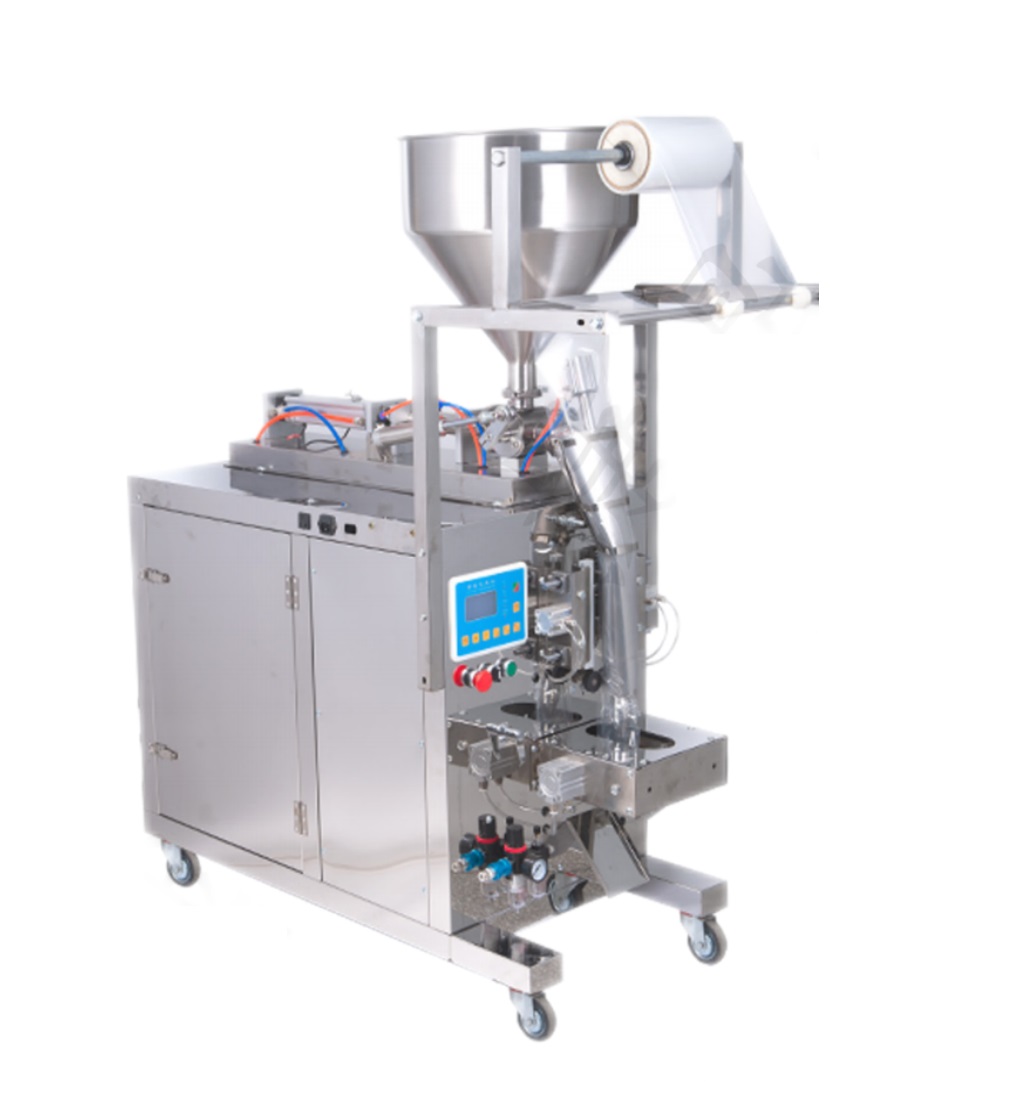

Automatic liquid packing machine

Automatic liquid packing machine G200

Product Information：

This machine is suitable for automatic packaging of liquid of foods, medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil, fruit sauce,tomato ketchup and honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil, soy etc

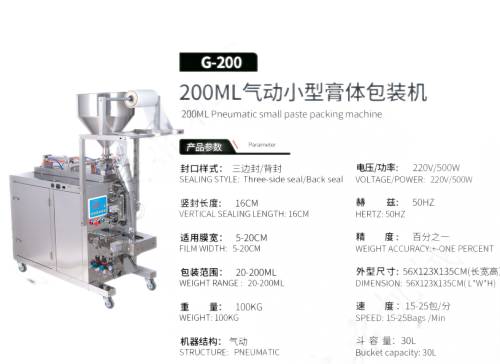

Technical parameters:

Film width range:5-20CM      Vertical sealing range:1-16CM

Machine length, width, and height:56 * 124 * 134CM     Machine power:500W

Voltage/Hz:220V/50HZ (can be changed to other voltages)

Machine weight:100KG (including the weight of the packaging machine)

Packaging range:3-30ML (optional)

Packaging range:5-50ML (optional)

Packaging range:10-100ML (optional)

Packaging range:20-200ML (optional)

Packaging accuracy:1% (varies depending on material)

Packaging speed:15-25 times/minute (depending on material)

Machine features:

1. This machine can finish : forming bag–measuring–material filling—sealing—counting—date code printing, all the work automatically;

2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

5.Eye Mark System ,machine can cut complete logo

6.Machine Stop Automaticlly if it is out of film

7.Fine Packaging performance.low noies .clear sealing texture and strong sealing performacnce

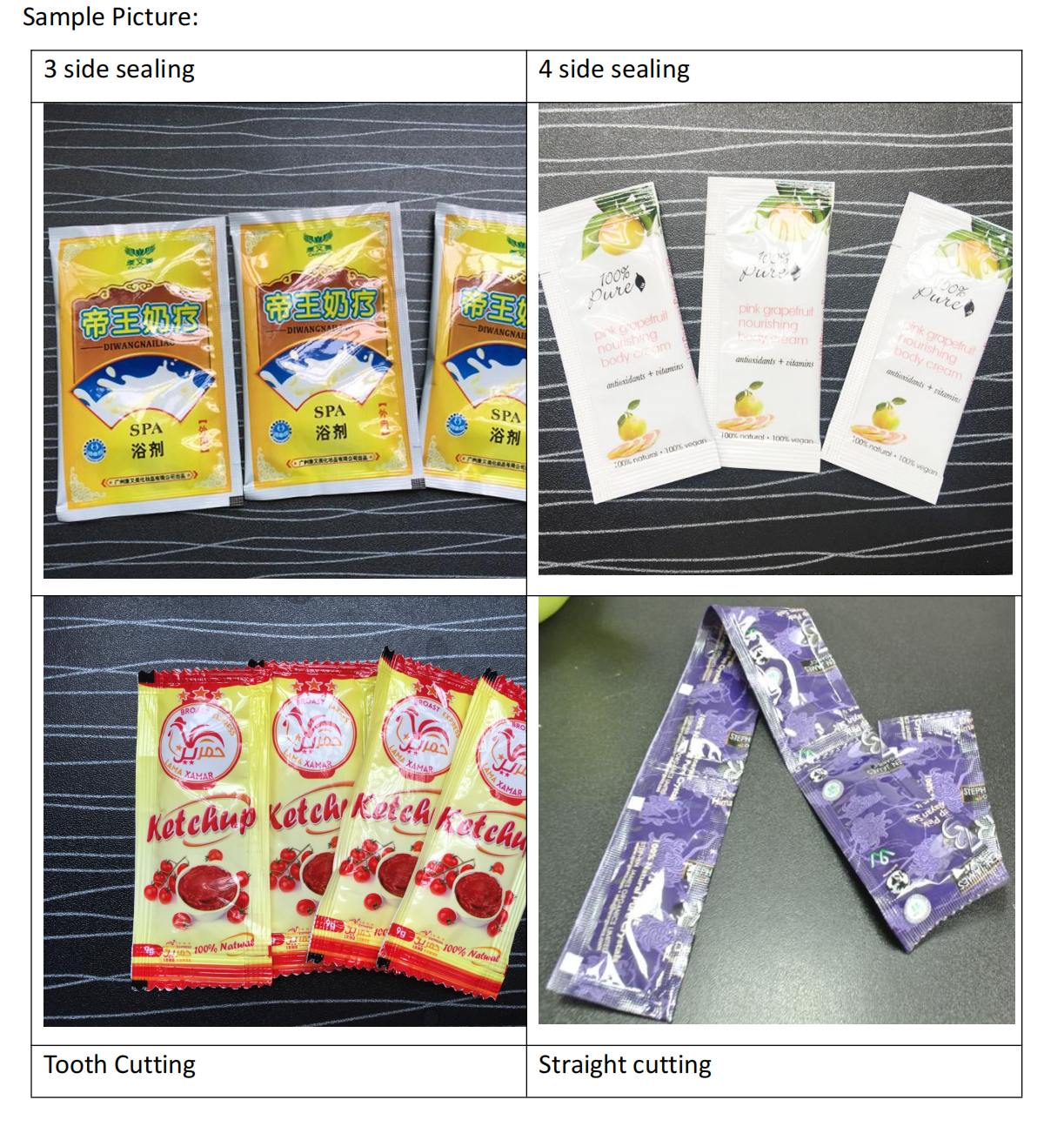

8.Straight line easy tearing&emboss code as Free Options

Applicable packing film:

Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
