Liquid bag filling machine

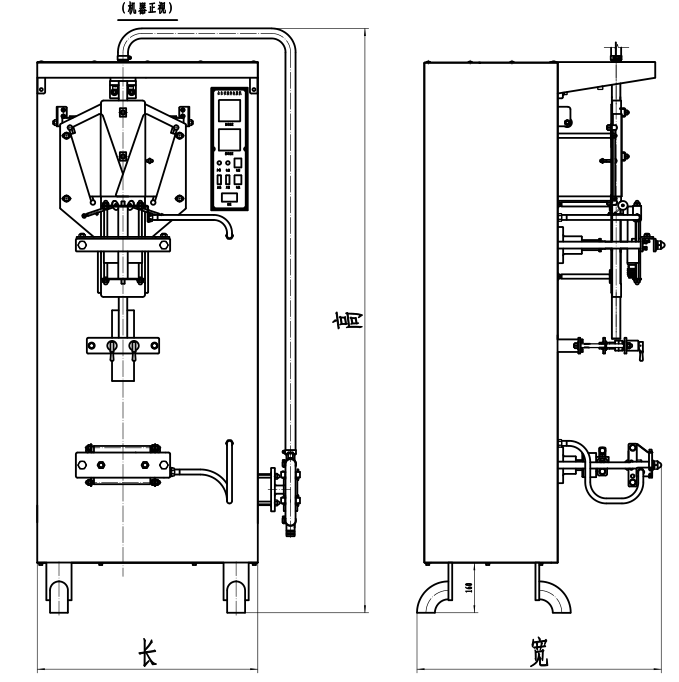

Product structure diagram:

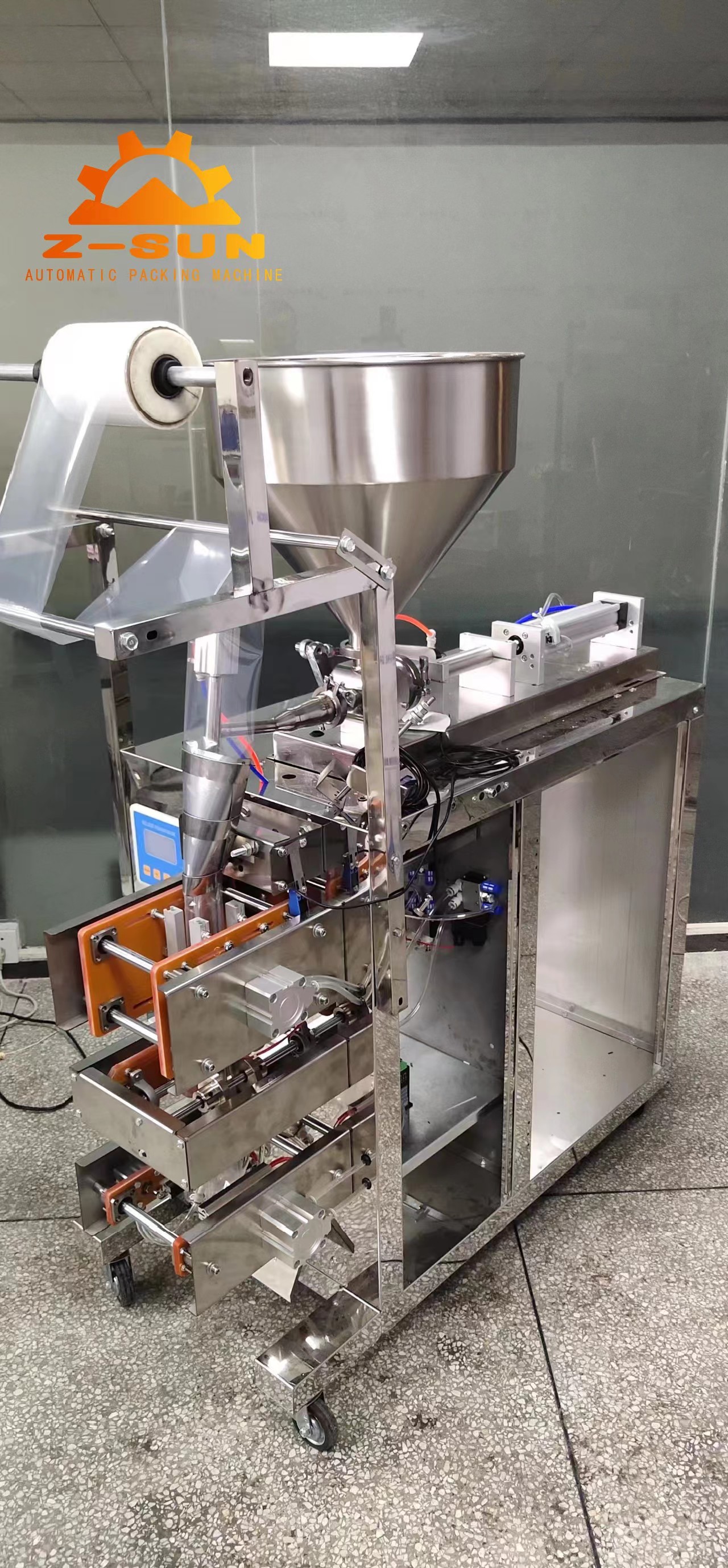

Product rendering:

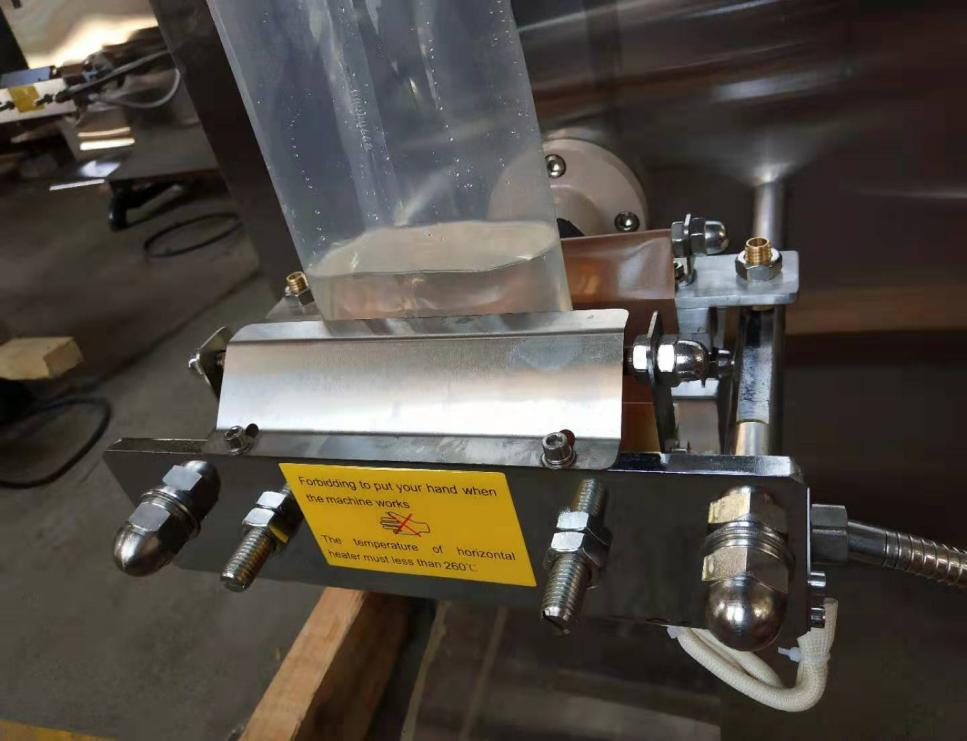

Close up of the film pulling part and the host horizontal sealing
Bag filling machine video, please click on the link to view details.
https://youtu.be/vtbc0owddmc?si=gf55gaqmug0yszwa
Performance characteristics:
This device is widely used for packaging milk, soy milk, soy sauce, vinegar, yellow wine, and various liquids. The entire packaging process includes film sterilization, bag making, date printing, filling, sealing, cutting, and counting, which can be completed in one go. The heat sealing temperature can be automatically controlled. The packaging is exquisite and flat, with a stainless steel structure that meets hygiene requirements.
The overall contact material components and casing are made of 304 stainless steel, which meets the food and drug hygiene licensing standards.
This machine is suitable for back sealing and valve plug pump filling and metering.
Technical parameters:
| Type | SJ-1000 |
| Made into bag length mm | 50-150 |
| Packaging film width mm | 100-320 |
| Packaging film thickness un | 6-10 |
| Packaging capacity ml | 50-550 |
| Packaging speed bags/h | 2000-2200 |
| Power Kw | 1.6 |
| Voltage | 220v50HZ（60HZ） |
| Overall weight Kg | 275 |
List of boxed accessories and vulnerable parts:
| Name | Number | Remark |
| Heating duct | 2 set | Quick-wear part |
| High-temperature cloth | 2 set | Quick-wear part |
| Vertical sealing silicone strip | 1 set | Quick-wear part |
| Horizontal sealing silicone strip | 1 set | Quick-wear part |
| Oil kettle | 1 set | |
| External hexagonal wrench 8-24 | 1 set | |
| Internal hexagonal wrench 3-10 | 1 set | |
| Cross screwdriver | 1 set | |
| Slotted screwdriver | 1set |
Electrical component configuration list:
| Name | Brand | Remark |
| Motor | Lotte Electromechanical | |
| Gear reducer | Hangzhou Jiepai | |
| Temperature controller | Yili Plastic |
