Semi Automatic Powder Filling Machine

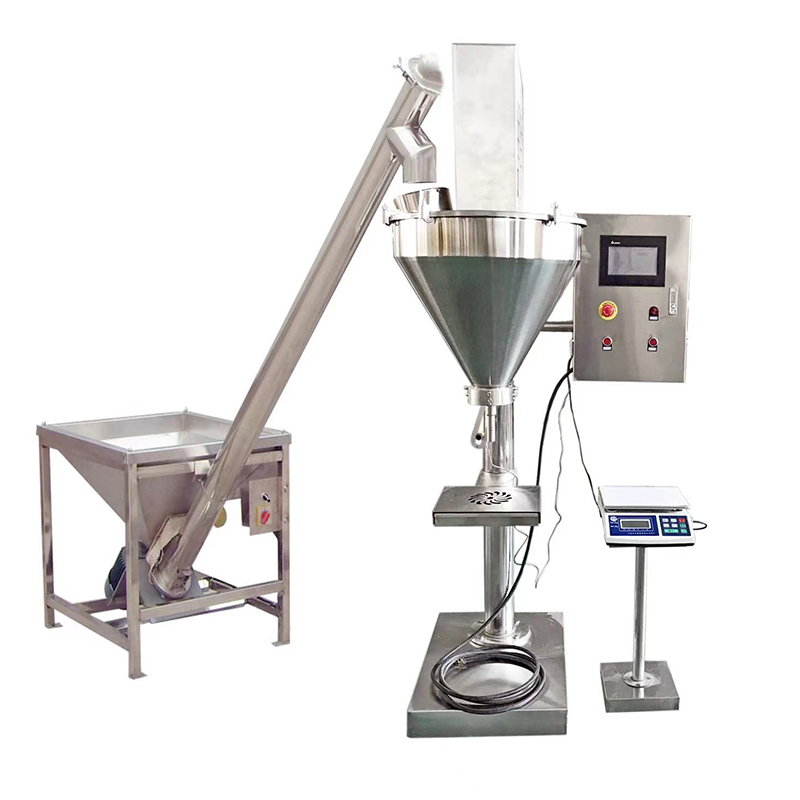

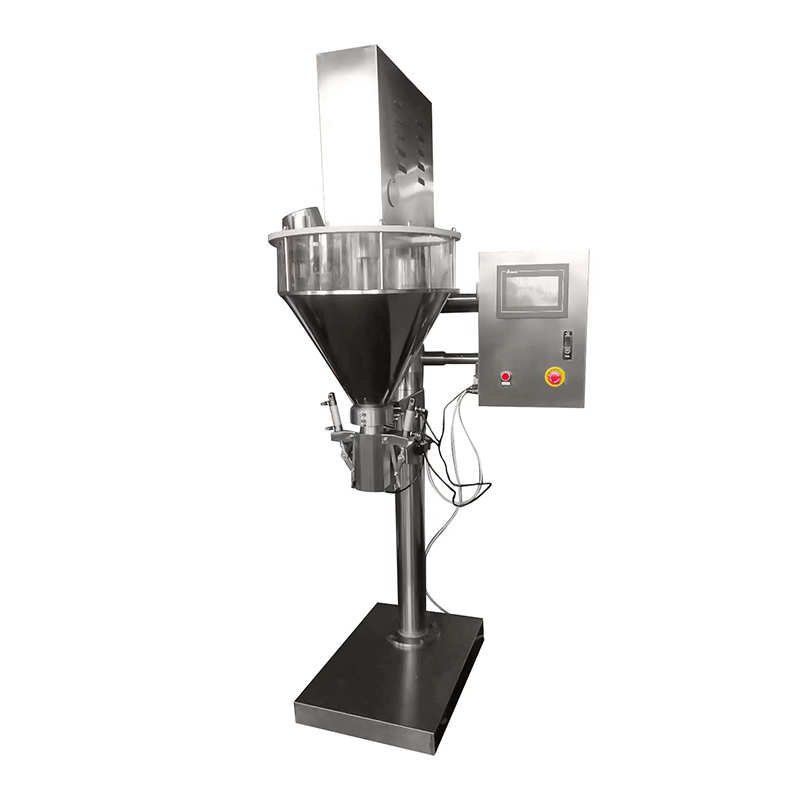

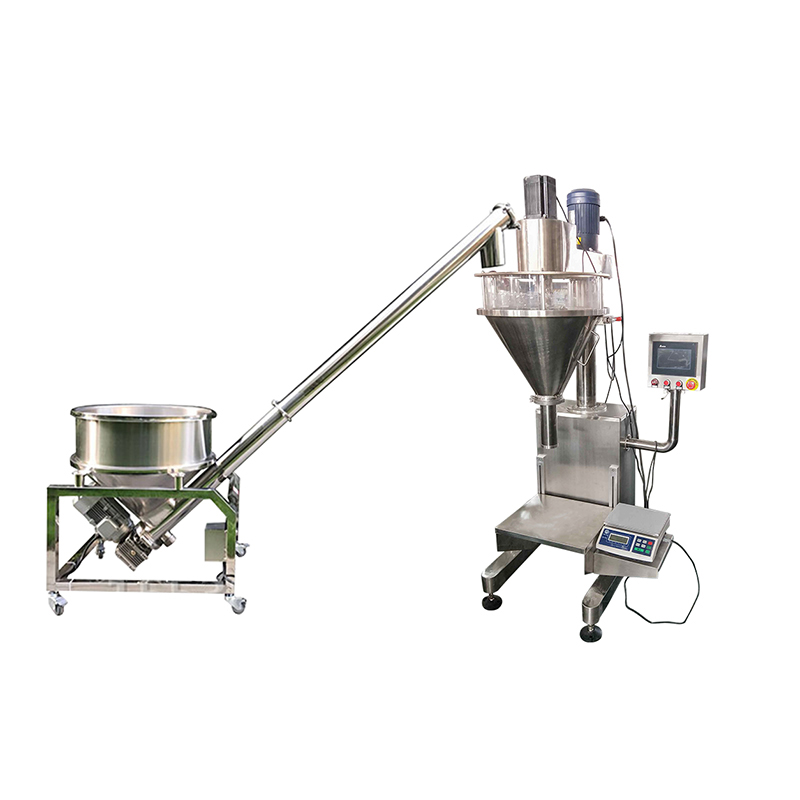

Sh-f2 automatic quantitative powder packaging machine

The machine adopts the measurement method of screw filling and electronic weighing feedback, and is controlled by microcomputer. It has the functions of automatic quantification, automatic filling, automatic error correction, counting, clearing and so on. It is suitable for quantitative packaging and filling of composite condiments (such as spicy fresh), natural condiments (thirteen spices), food additives, essence, flour, milk powder, protein powder, solid drinks, sugar, monosodium glutamate, pesticides, veterinary drugs, washing powder, enzyme preparations, feed additives, chemical industry, new building materials and other powder (micro powder, ultra-fine powder) and powder particle mixtures.

Characteristic:

It is suitable for quantitative filling of various bottles, cans and bags, and the packaging containers are not limited

The filling motor adopts stepping motor or imported servo motor

The mixing motor adopts Taiwan made noise free motor

Photoelectric induction blanking, or optional foot switch blanking

The graduation value of the feedback scale is adjustable to meet the needs of a variety of accuracy

The filling motor speed is adjustable to meet the requirements of various materials

It is made of stainless steel and equipped with a feeding machine to realize automatic material level control

Function:

Automatic error correction

Weight out of tolerance alarm

Product count

Technical parameters:

Measurement range: 1-5000g

Accuracy grade: 1.0

Packing speed: 1200-3500 bags / hour

Overall dimension: long × wide × High (690 × one thousand and sixty × 1900)mm

Power supply · power: AC380 50Hz · 900W
