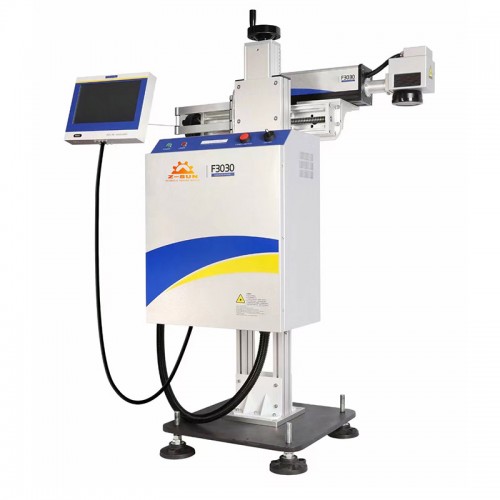

CO2 Laser Marking Machine
This series mainly adopts customized Nanjing boster CO2 laser, Jinhai Chuang galvanometer scanning system and customized control software. It has fast speed, stable performance, good laser mode, long service life, continuous work of more than 30000 hours, high electro-optical conversion efficiency and low power consumption. The system is simple to operate and flexible to change. Full Chinese interface, compatible with files output by various software such as AutoCAD, CorelDRAW, Photoshop, CAXA, etc., can mark barcode, QR code, graphic text, etc., support PLT, PCX, DXF, BMP and other file formats, and directly use SHX and TTF font. The system can automatically code and print serial number, batch number, date, etc.
|
Technical parameters of laser marking machine |
|
|
Laser type |
CO2 laser wavelength: 9.3um/10.2um/10.6um, which can meet the working requirements of more than 30000 hours |
|
Output power |
30W/60W |
|
focal length |
210mm（Standard configuration） |
|
Maximum linear Marking speed |
12000mm/S |
|
Marking parameters |
|
|
Marking range |
110mm×110mm |
|
Number of marking lines |
Arbitrarily set the number of lines within the effective marking range |
|
Minimum line width |
0.1mm |
|
Production line speed |
Visual code content, up to 100 m / min |
|
Character height |
0.4-70mm |
|
Typeface |
Single line font, dot matrix font, TrueType font |
| Marking content | Text, graphics, bar code, two-dimensional code, dynamic serial number, real-time clock, TXT file, RS232 communication data, etc |
|
Marking angle |
Any angle, four-dimensional adjustable |
|
Operation interface |
|
|
Monitor |
Industrial touch screen |
|
Operating language |
Chinese and English (other languages can be supported) |
|
Environmental requirements |
|
|
Protection level |
≥IP54 |
|
Cooling |
Air cooling |
|
Ambient temperature |
-5-45 centigrade |
|
Humidity |
Relative humidity 90% RH, non condensing |
|
Power supply |
220V,1KVA |
1.3 Laser machine configuration list
|
Serial number |
Product Name |
unit |
quantity |
brand |
|
1 |
Laser |
platform |
1 |
Boster |
|
2 |
Galvanometer |
platform |
1 |
Jin Haichuang |
|
3 |
Field mirror |
set |
1 |
Deqi |
|
4 |
Touch system |
platform |
1 |
(VIII) consideration |
|
5 |
Control power supply |
set |
1 |
Mingwei |
|
6 |
Chassis |
platform |
1 |
Dana |
|
7 |
Bracket |
set |
1 |
Dana |
